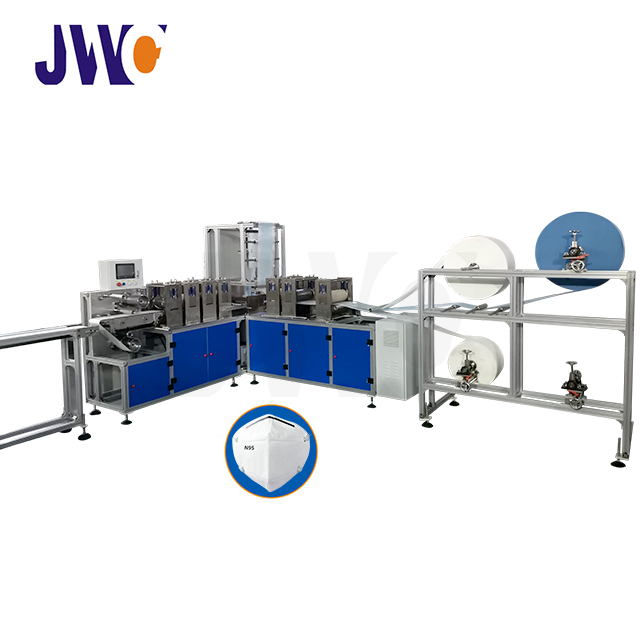

This machine is a full-automatic folding mask production line (typical models such as N95 masks). The equipment feeds with whole roll materials, and the multi-layer non-woven fabric roll is subjected to composite roll welding,nose bridge and 2 ear band unwinding、cutting and melting ,After rolling and cutting to a fixed length, welding is performed, and then the body is folded in half. After ultrasonic welding and fusion, the final mask is rolled and formed.
Model: | |
---|---|
Speed: | |
weight: | |
Machine size (L*W*H): | |
Materials rack: | |
Quantity: | |
Performance features:
Folding mask machine, also known as stereo mask machine, is a full-automatic machine used to produce folding masks. Using ultrasonic technology, 3-4 layers of PP non-woven fabric, activated carbon and filter materials are bonded, and the folding mask body is cut out, nose beam strip is welded, ear band is welded, and finished products are output. High automation and labor cost saving.
Technical parameters:
Power supply voltage: AC380V / 220V
Power: 9.5Kw
Speed: 0-50pcs / min
Boundary dimension: 6500mm (L) × 1000mm (W) × 1800mm (H)
Weight: 2000kg
MASK MATERIALS:
raw material | style(gsm) | length (mm) | width(mm) | weight/piece |
SS non woven(outer layer) | 25 | 175 | 200 | 0.875 |
melt blown non woven(middle layer) | 22 | 175 | 180 | 0.693 |
SS non woven(innter layer) | 25 | 175 | 210 | 0.91875 |
nose wire | 100 | |||
elastic ear loop belt | 300 |
