JWC-KZ-AB

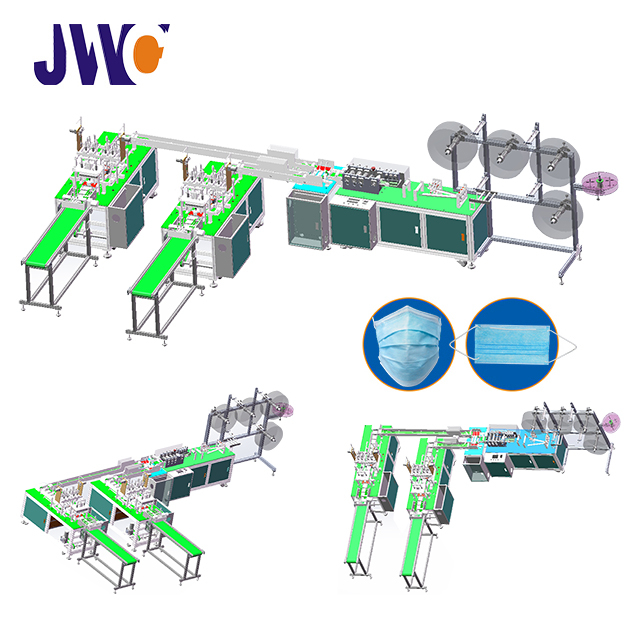

Automatic disposable mask making machine
JWC-KZ-AB
Equipment installation and configuration requirements
(1) Equipment size: 6500mm (L) × 4500mm (W) × 1900mm (H);
(2) Production line speed: 80-120 pieces per minute;
(3) Equipment weight: ≤ 3000kg, ground bearing ≤ 500kg / m2;
(4) Working power supply: equipment 220VAC ± 5%, 50Hz, rated power about 9kw;
(5) Compressed air: 0.5-0.7mpa, with a flow rate of about 300L / min;
(6) Operating environment: temperature 10-35 ℃, humidity 5-35% HR, no combustible, corrosive gas, no dust (cleanliness no less than 100000).
MASK MATERIALS:
raw material | style(gsm) | length (mm) | width(mm) | weight/piece |
SS non woven(outer layer) | 25 | 175 | 200 | 0.875 |
melt blown non woven(middle layer) | 22 | 175 | 180 | 0.693 |
SS non woven(innter layer) | 25 | 175 | 210 | 0.91875 |
nose wire | 100 | |||
elastic ear loop belt | 300 |
